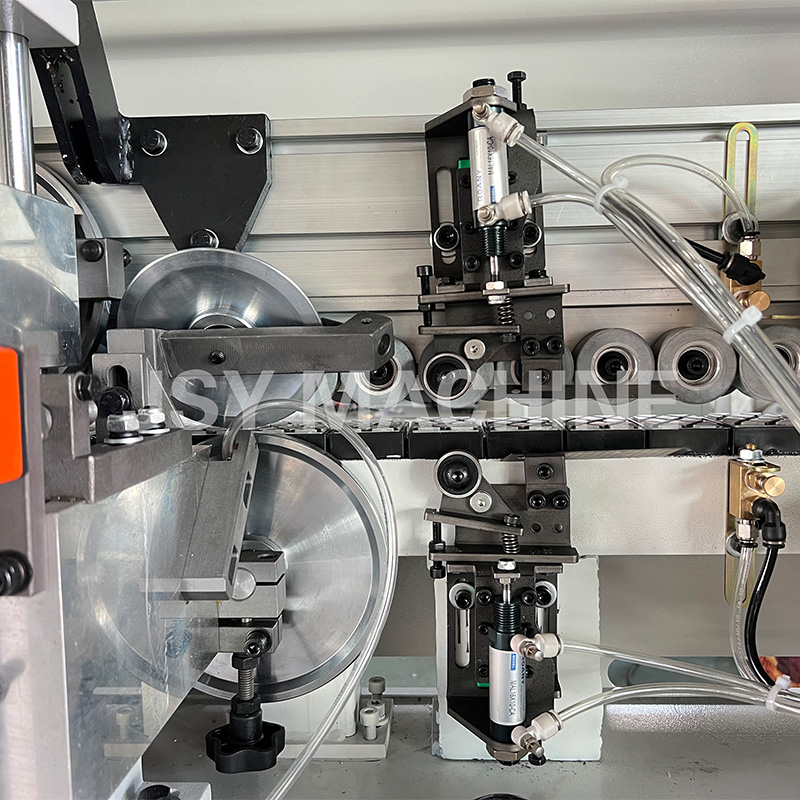

JSY500S — Five-Function Automatic Edge Banding Machine
JSY500S Automatic Edge Banding Machine — Five Essential Functions for Clean, Furniture-Grade Edges.

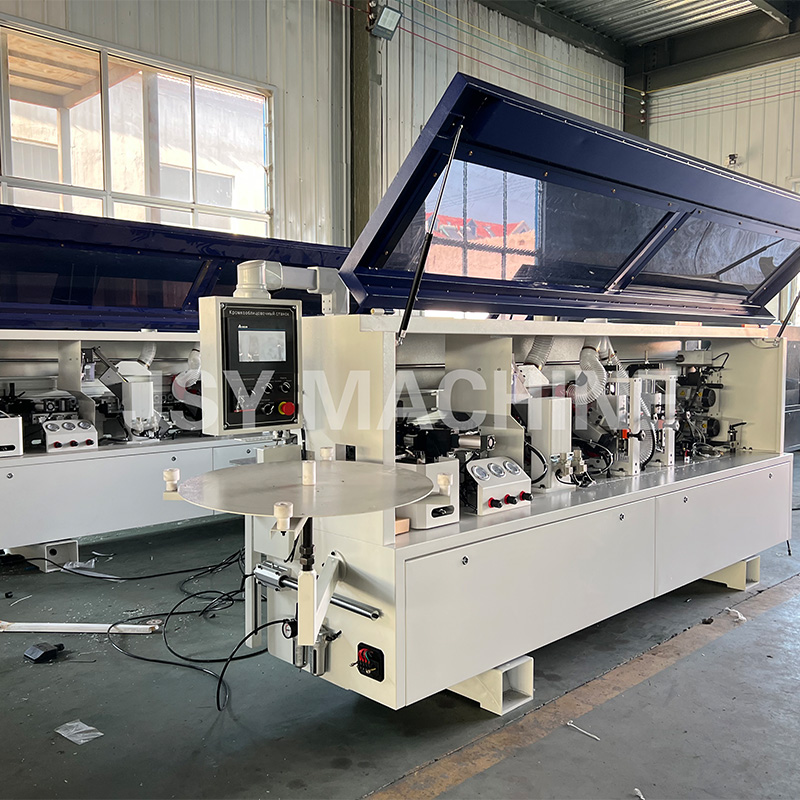

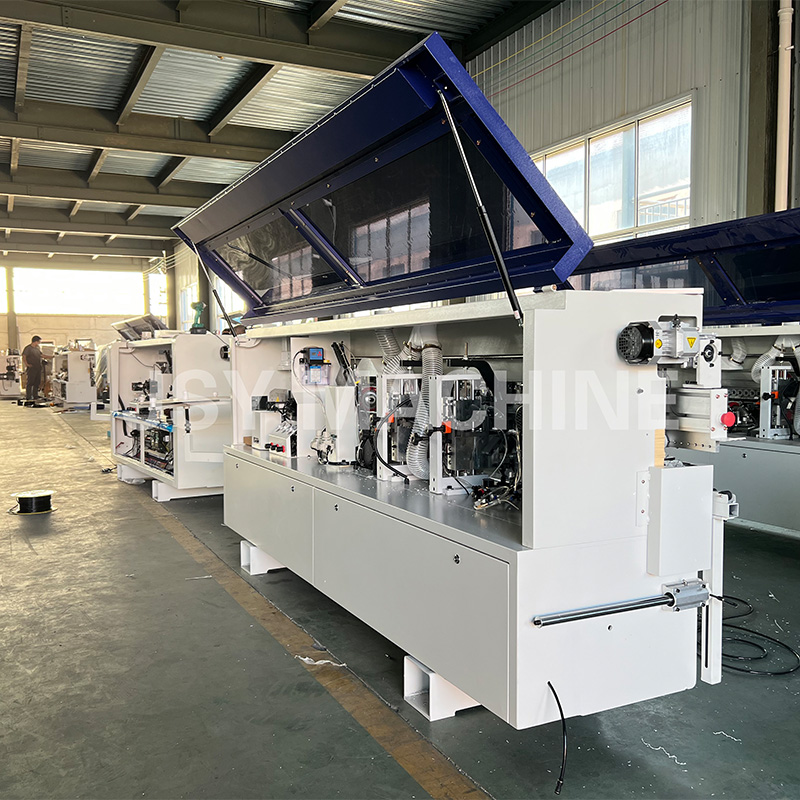

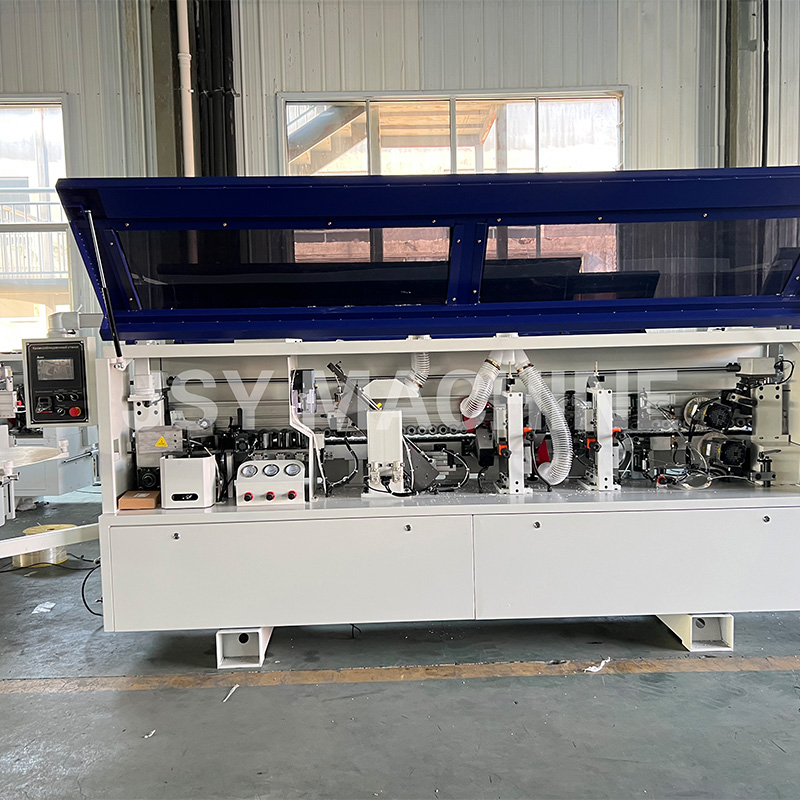

The JSY500S is a compact fully automatic five-function edge banding machine built for furniture workshops and small-to-medium panel processing lines. In one continuous pass it performs Gluing, End Trimming, Fine Trimming, Scraping and Buffing, turning raw MDF, plywood, particleboard and PVC panel edges into clean, sealed, ready-to-sell surfaces.
Key Specifications
| Parameter | Value |
| Overall Dimension | 3300 × 650 × 1350 mm |
| Machine Weight | 1200 kg |
| Working Voltage | 380V / 50Hz / 3P (customizable) |
Total Power | 6.7 kW |
| Feed Speed | 18 m/min |
| Panel Thickness | 10–60 mm |
| Min. Panel Width × Length | 50 mm × 70 mm |
| Working Pressure | 0.6 MPa |
| Edge Banding Thickness | 0.3–3 mm |
Why Choose the JSY500S
Space-saving footprint — at just 3.3 m long, it fits workshops where floor space is tight.
Low power consumption — only 6.7 kW total power, economical to run daily.
The essential five functions — everything needed for a clean, sellable edge, nothing you pay extra for.
Simple operation — PLC control panel; workers master it with minimal training.
Factory-direct value — manufactured in our own Qingdao facility with 16 years of experience, OEM/ODM supported.
Every machine is test-run before shipment and covered by a one-year warranty, with spare parts supplied at cost price and video installation guidance available.
Contact us today for a factory-direct quotation (EXW / FOB / CIF).
