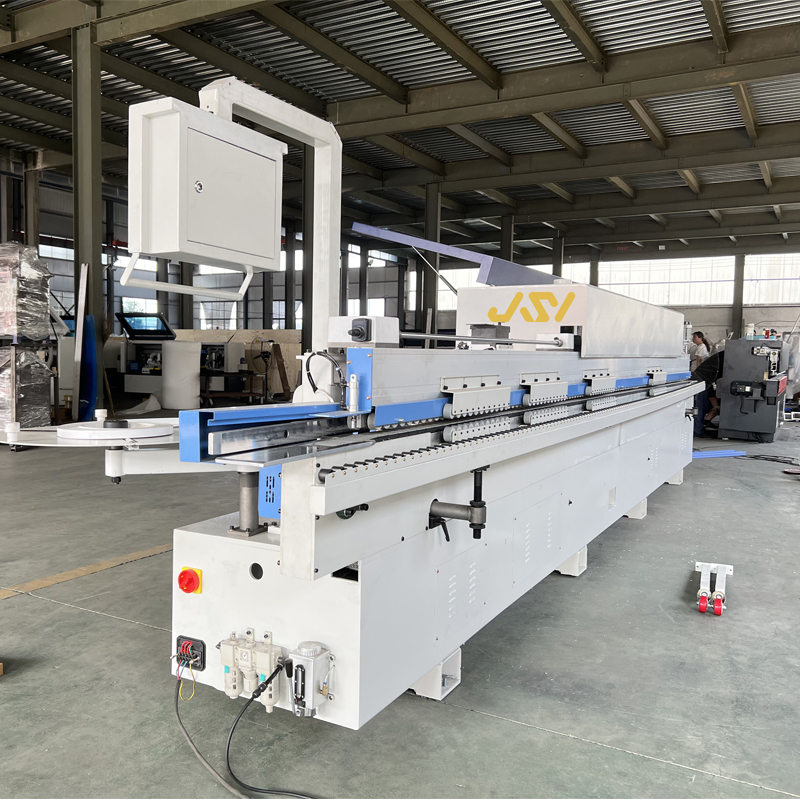

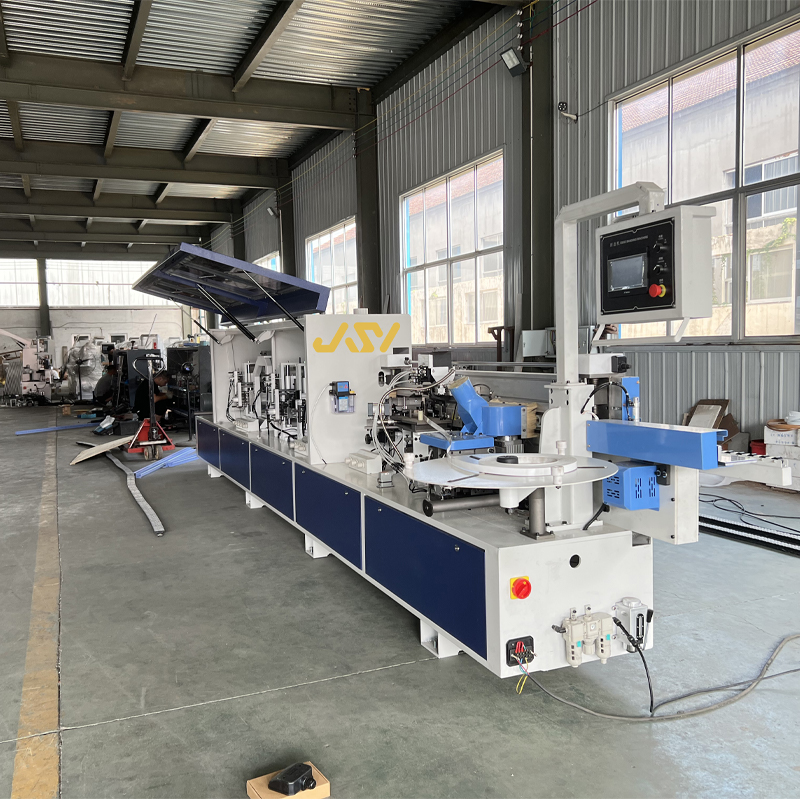

JSY800 — Eight-Function Industrial Edge Banding Machine
JSY800 Industrial Edge Banding Machine — Full Eight-Station Production Line for Demanding Factories

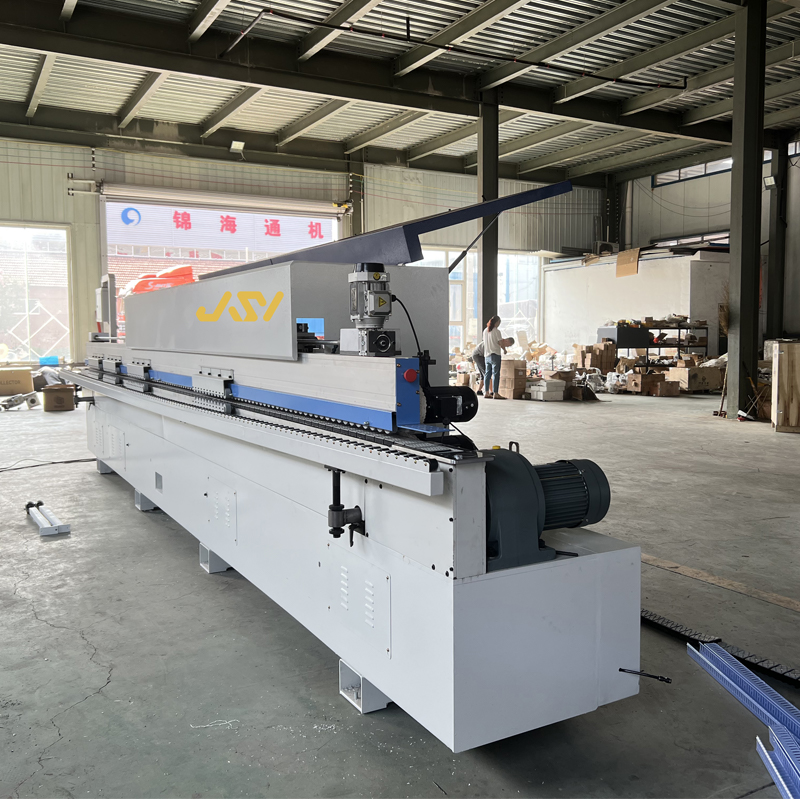

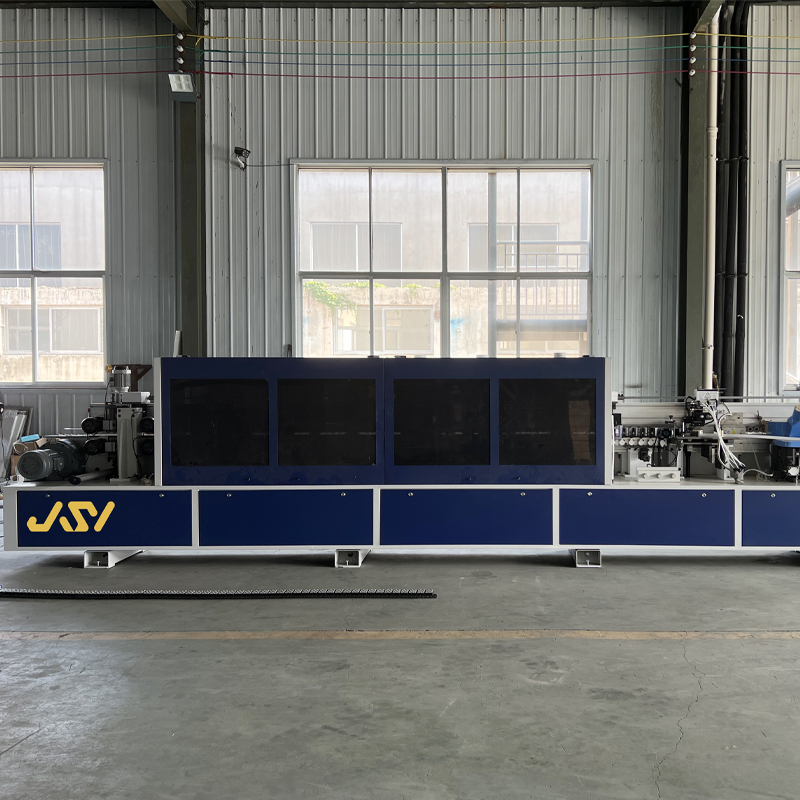

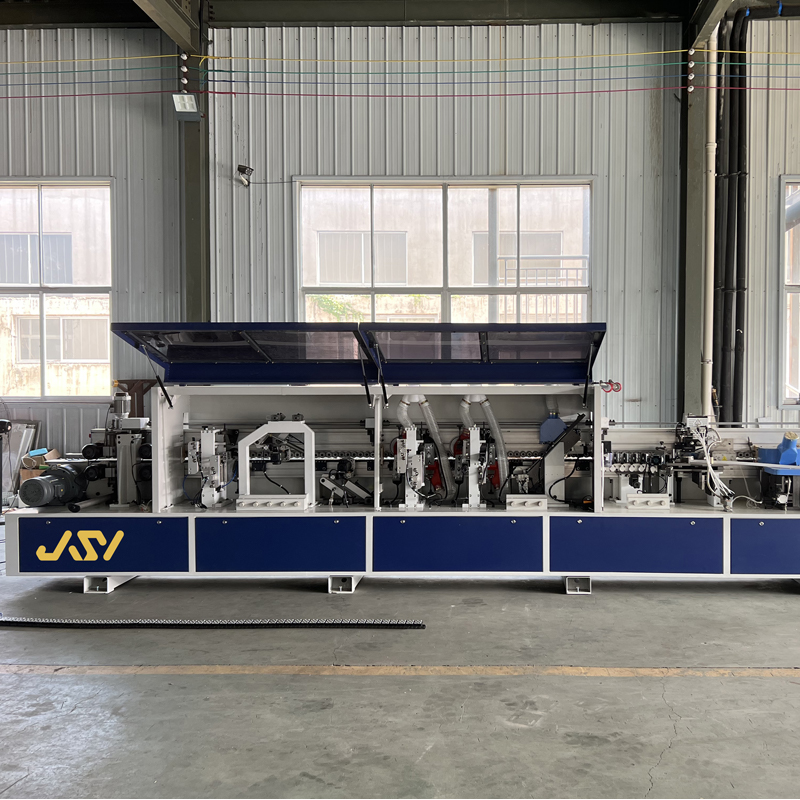

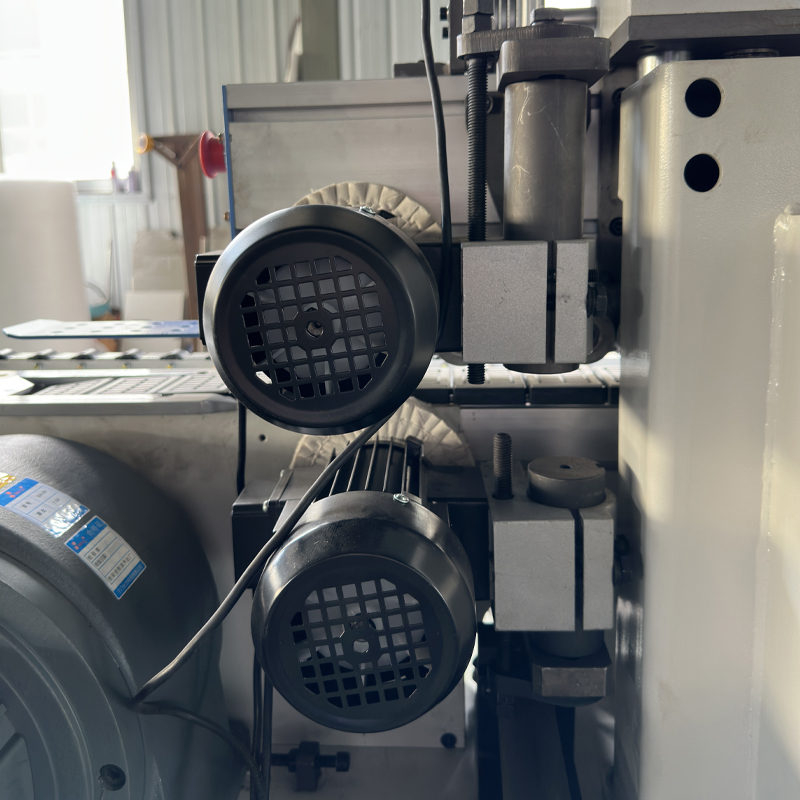

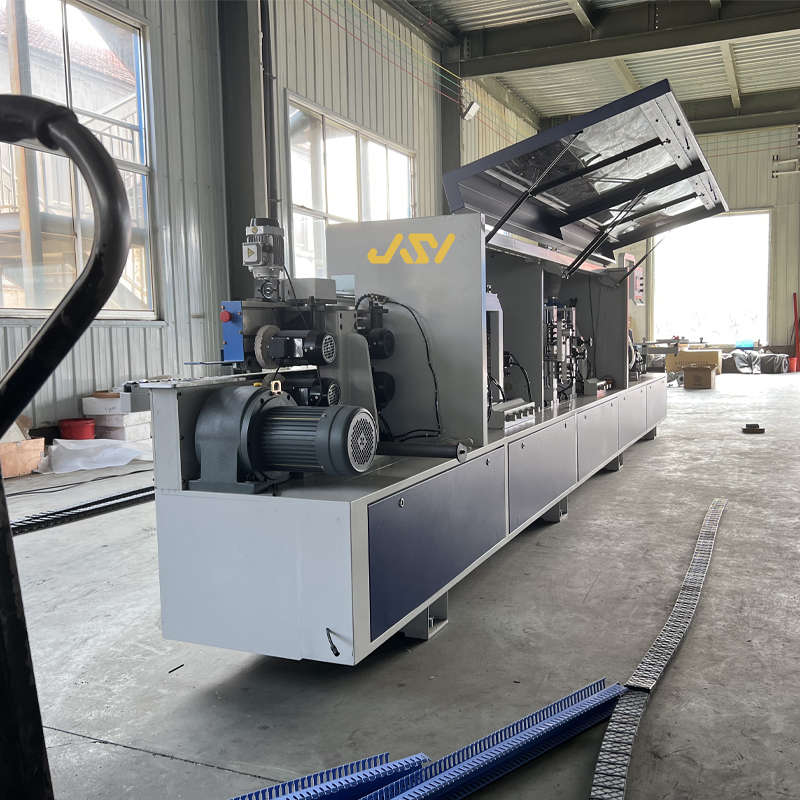

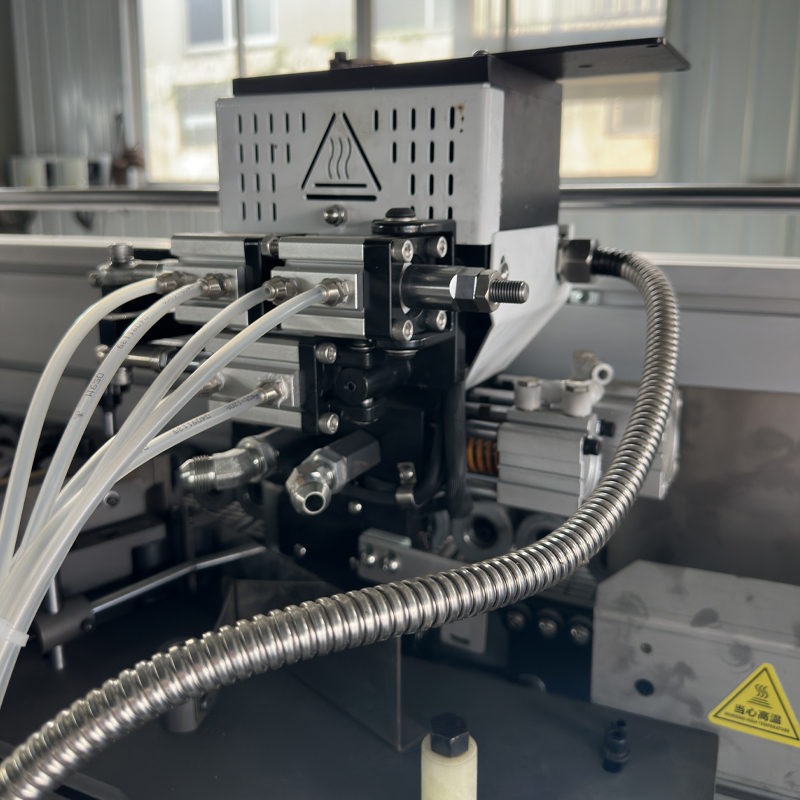

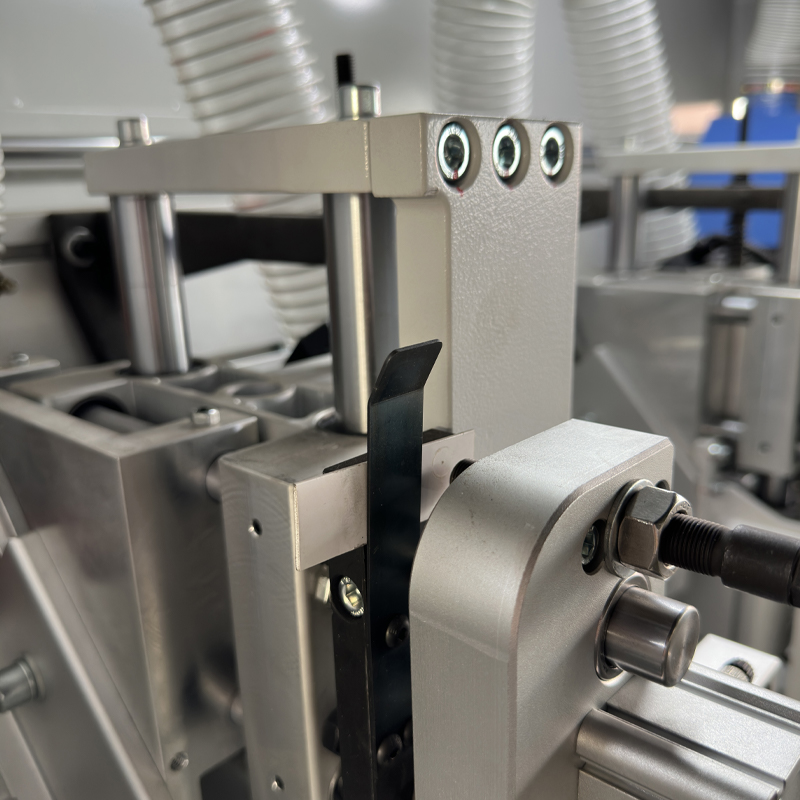

The JSY800 is the flagship of the JSY edge banding line — a 6.9-meter, 2700 kg industrial machine engineered for high-volume furniture plants that cannot compromise on edge quality. Its extended eight-station process — Pre-Milling, Gluing, End Trimming, Rough Trimming, Fine Trimming, Corner Trimming, Scraping and Buffing — handles both straight and shaped panels with a flawless finish at up to 24 m/min.
Key Specifications.
| Parameter | Value |
| Overall Dimension | 6900 × 900 × 1600 mm |
| Machine Weight | 2700 kg |
| Working Voltage | 380V / 50Hz / 3P (customizable) |
| Total Power | 18.35 kW |
| Feed Speed | 18–24 m/min (adjustable) |
| Panel Thickness | 10–60 mm |
| Min. Panel Width × Length | 50 mm × 70 mm |
| Working Pressure | 0.7 MPa |
| Edge Banding Thickness | 0.3–3 mm |
Why Choose the JSY800

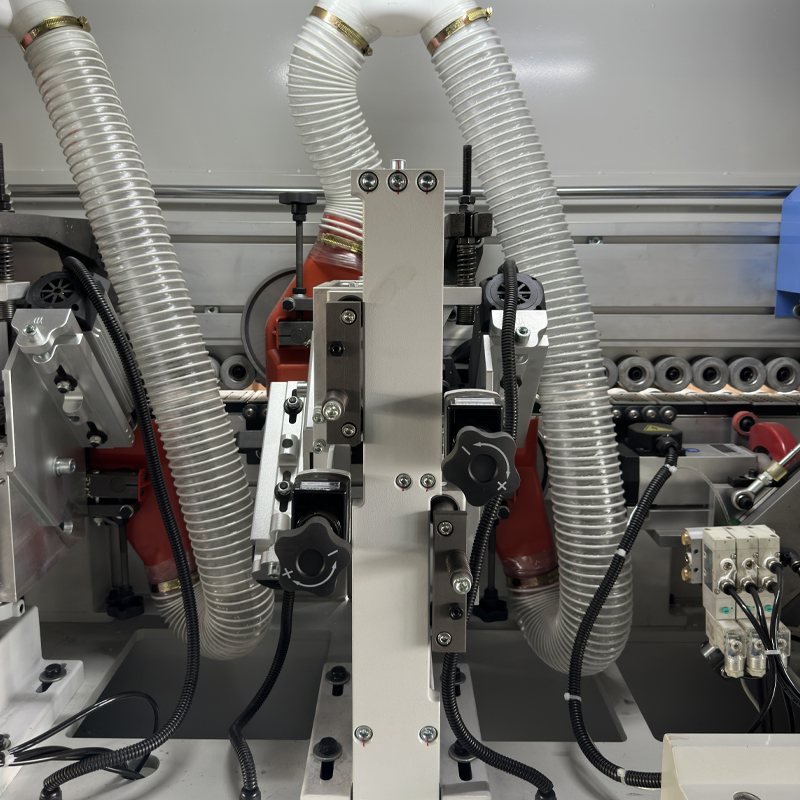

Rough + fine trimming duo — two-stage trimming removes band excess fast, then finishes precisely, protecting the fine cutters and extending their life.

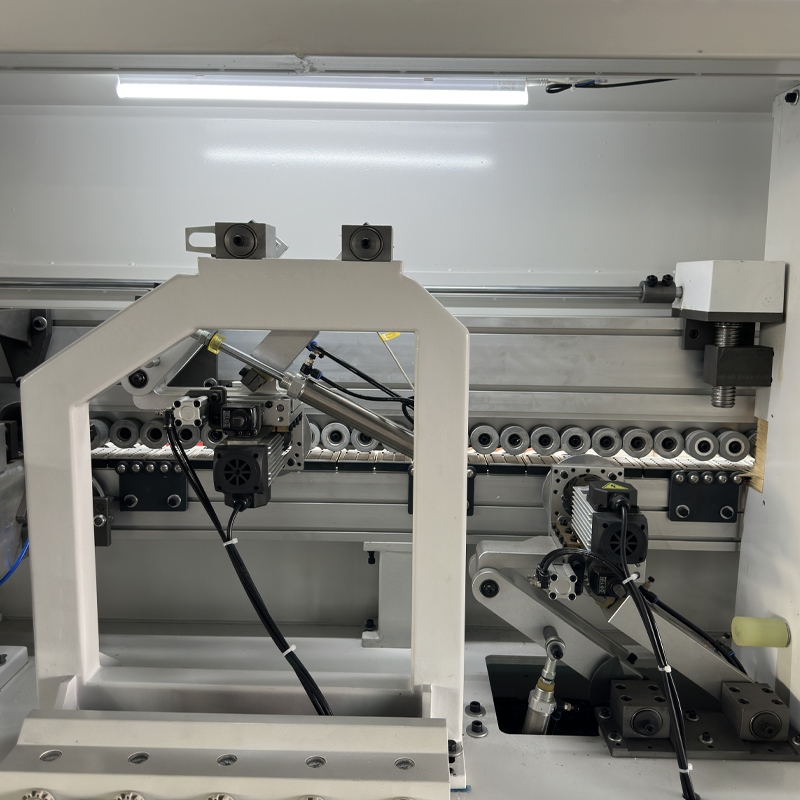

Corner trimming station — clean, finished corners on every panel, no manual touch-up.
2700 kg welded frame — maximum rigidity for round-the-clock production with repeatable accuracy.
Top of the line — when your factory's reputation depends on every edge, this is the machine.
Factory-direct from Qingdao, fully test-run and calibrated before shipment, one-year warranty with lifetime technical support.
Contact us today for a factory-direct quotation (EXW / FOB / CIF).
