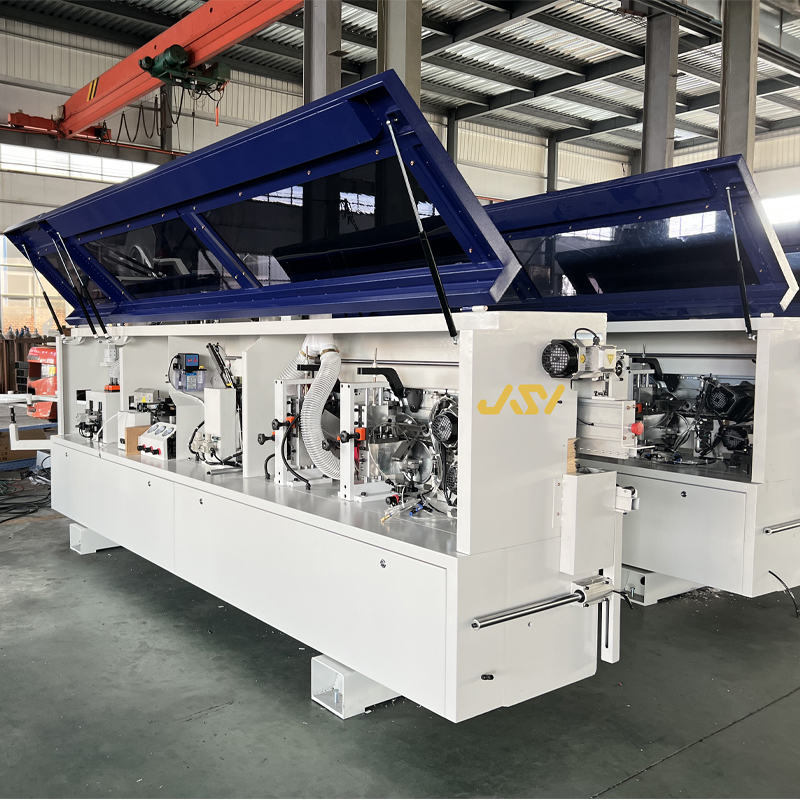

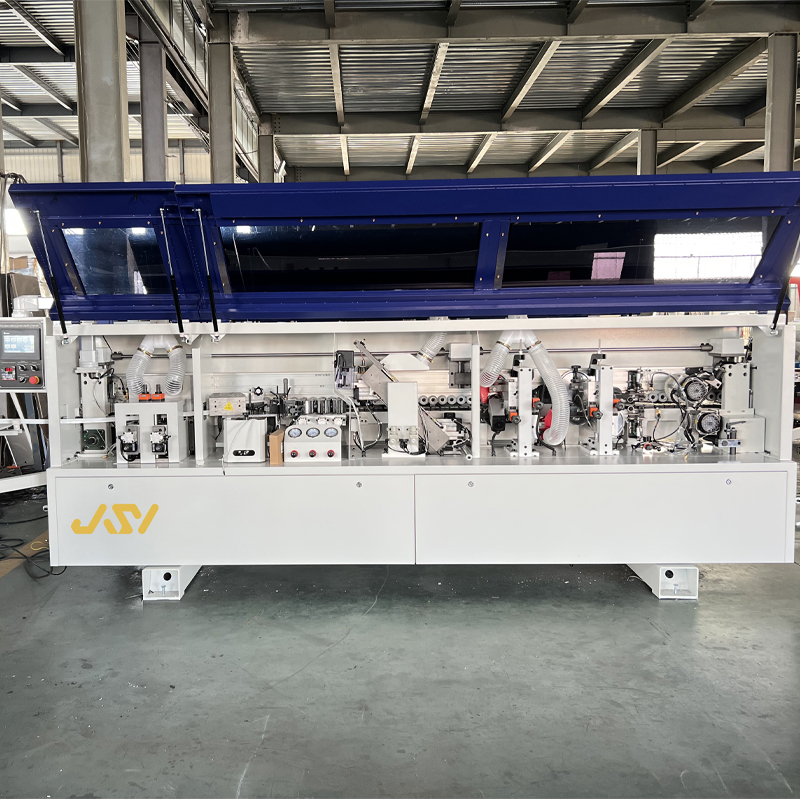

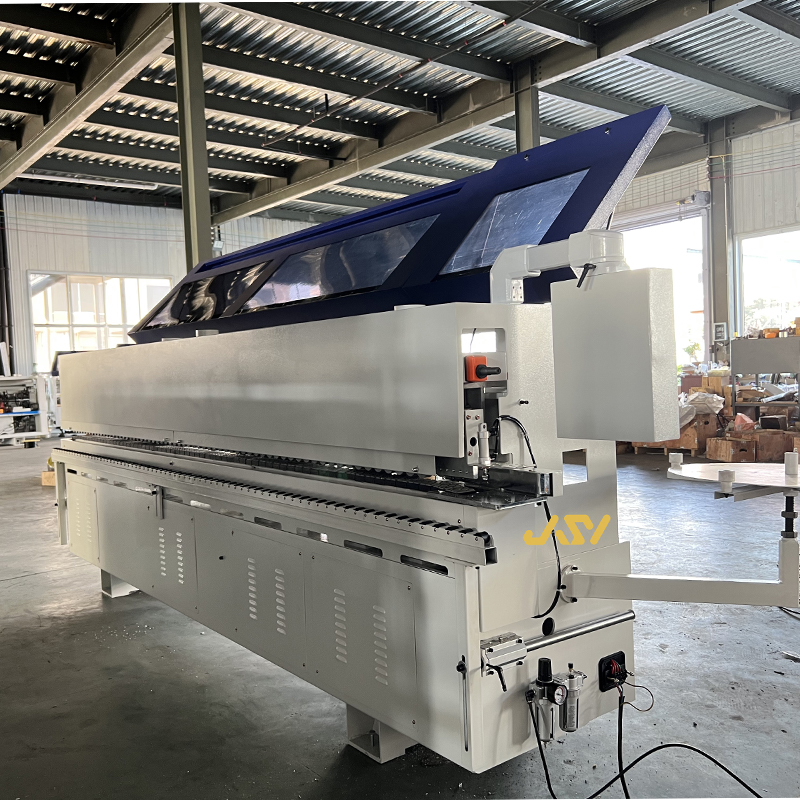

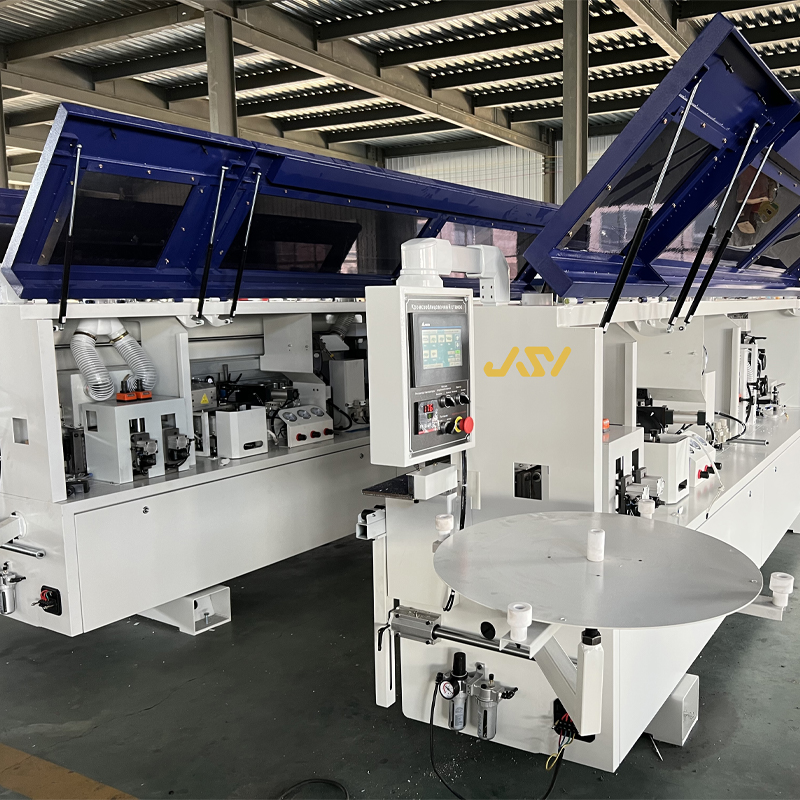

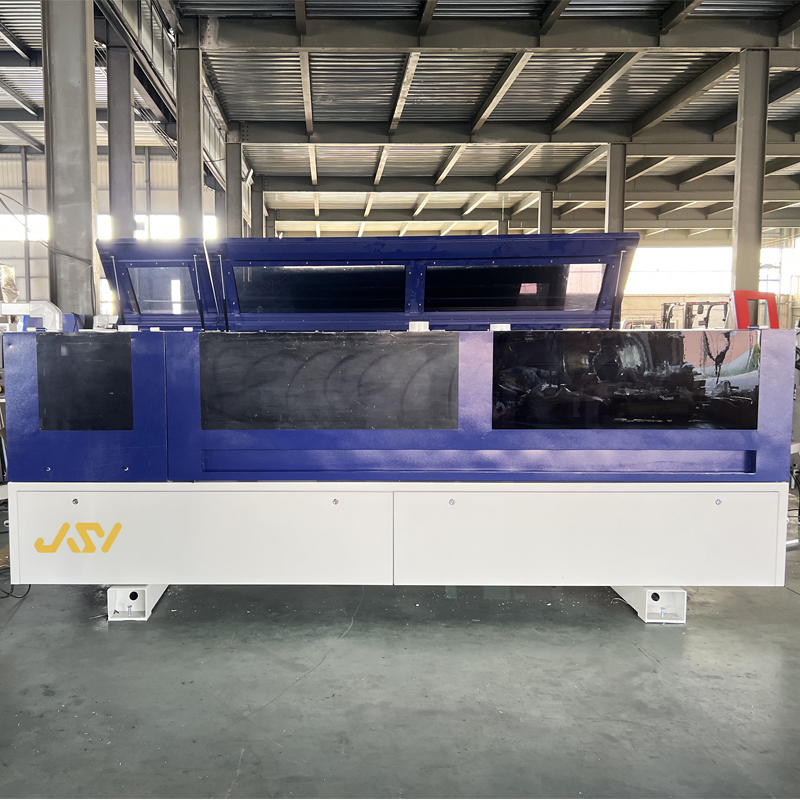

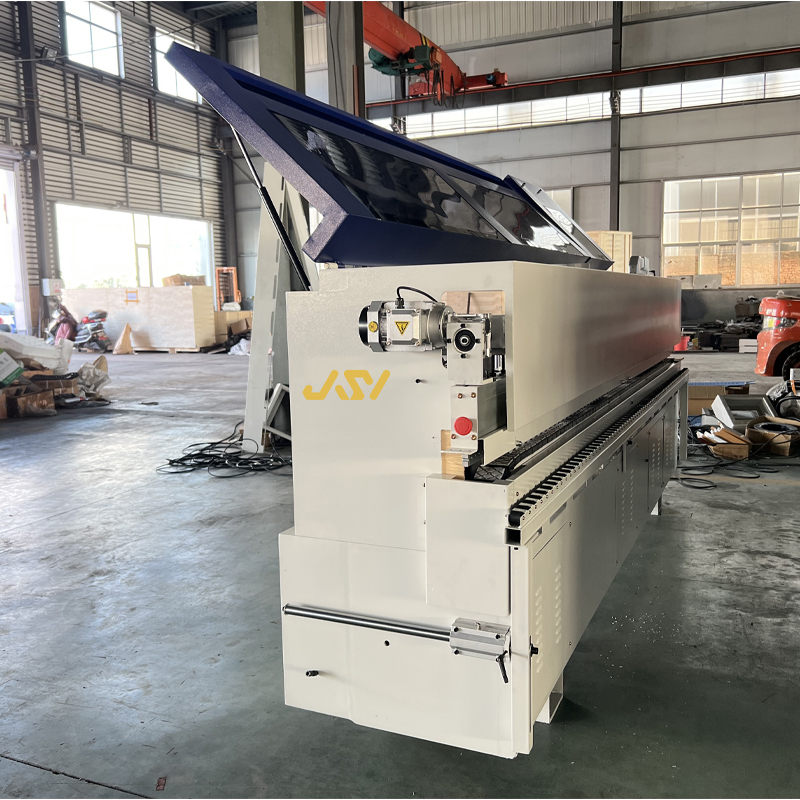

JSY600S — Six-Function Automatic Edge Banding Machine
JSY600S Automatic Edge Banding Machine — Six Functions with Soft Scraping for an Extra-Smooth Finish.

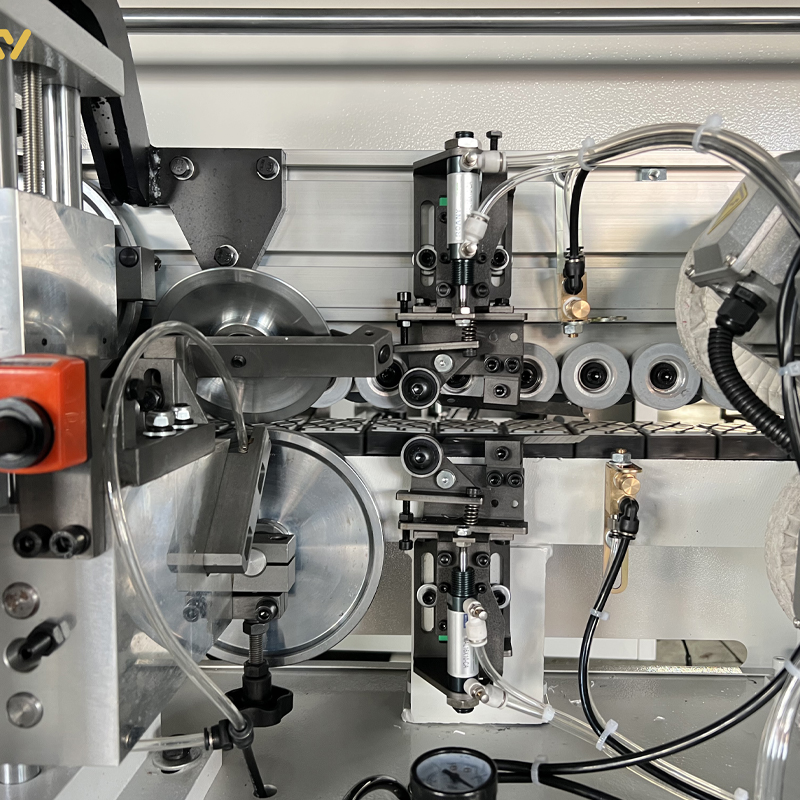

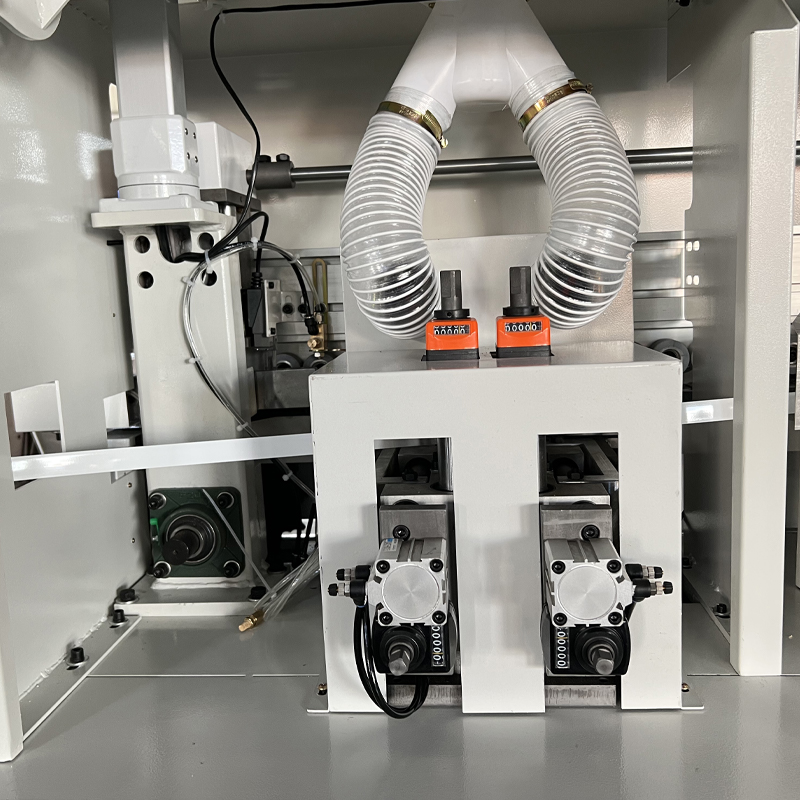

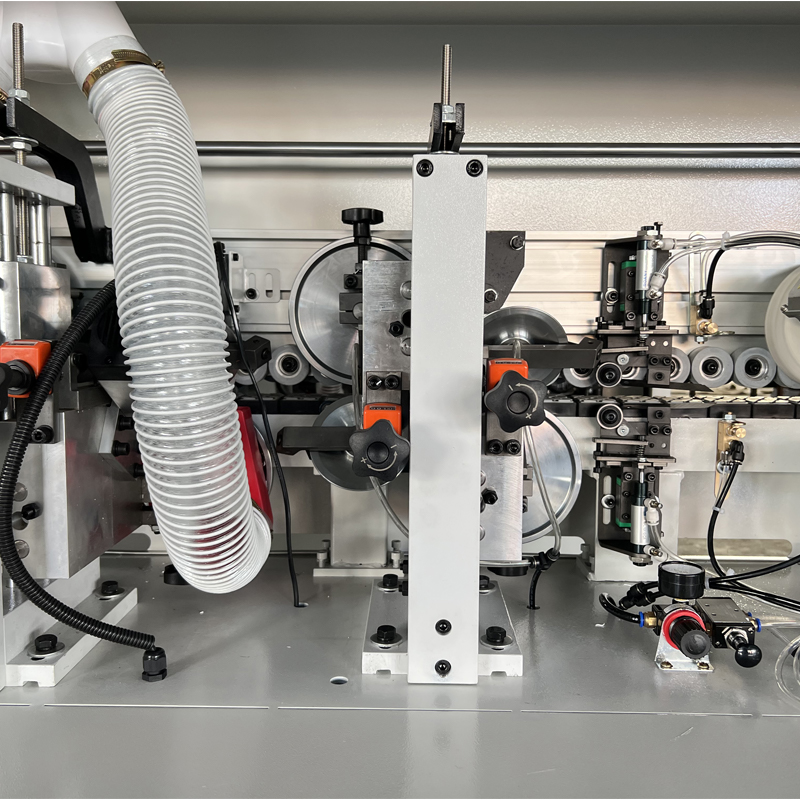

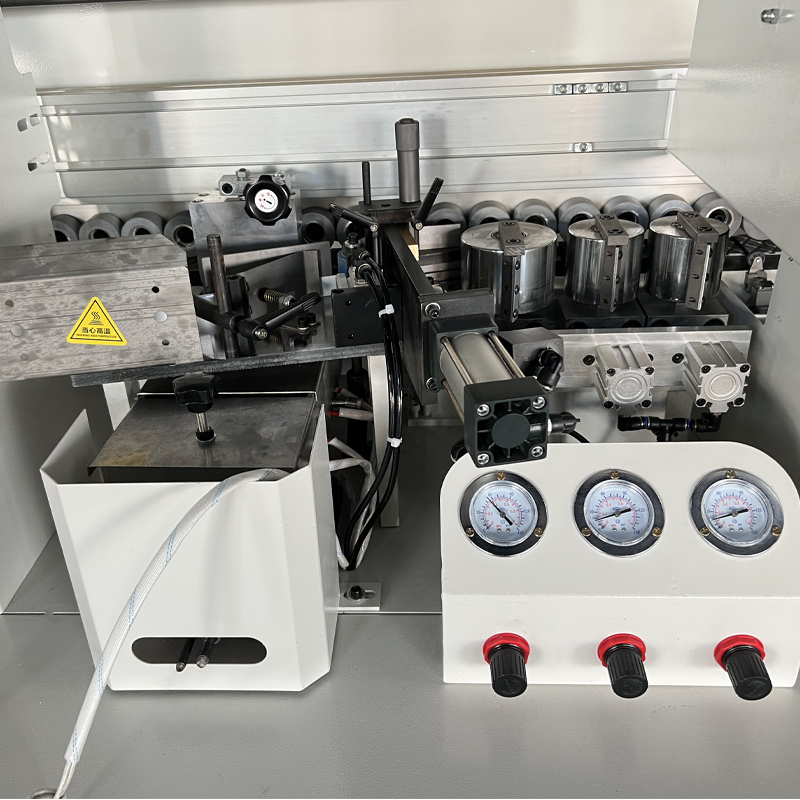

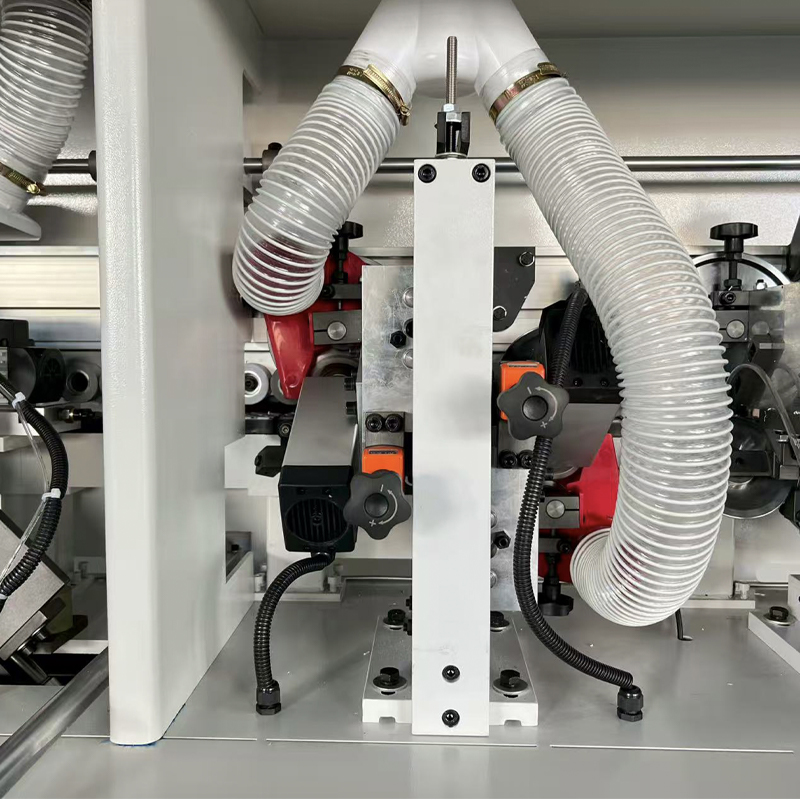

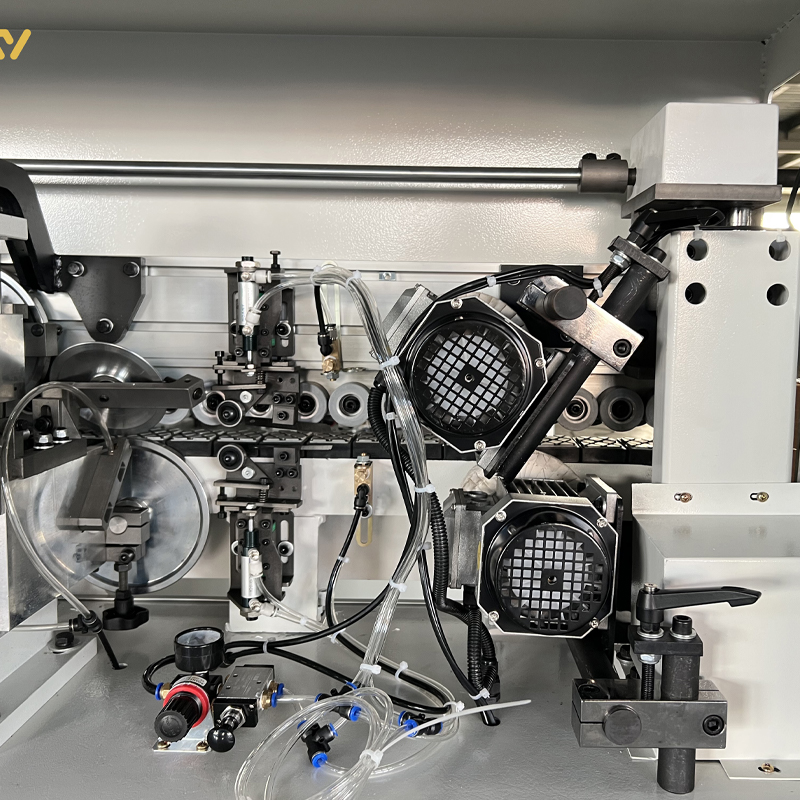

The JSY600S adds a Soft Scraping station to the five essential functions. After standard scraping removes glue residue and ridges, the soft scraper polishes the edge surface a second time — the difference between a "clean" edge and a "glossy, premium" edge that needs zero manual rework. Full process: Gluing, End Trimming, Fine Trimming, Scraping, Soft Scraping and Buffing.
Key Specifications
| Parameter | Value |
| Overall Dimension | 3800 × 650 × 1350 mm |
| Machine Weight | 1400 kg |
| Working Voltage | 380V / 50Hz / 3P (customizable) |
| Total Power | 10.3 kW |
| Feed Speed | 18–24 m/min (adjustable) |
| Panel Thickness | 10–60 mm |
| Min. Panel Width × Length | 50 mm × 70 mm |
| Working Pressure | 0.6 MPa |
| Edge Banding Thickness | 0.3–3 mm |
Why Choose the JSY600S
Soft scraping station — a second polishing pass for a glossy, no-rework edge finish.
Variable feed speed 18–24 m/min — match speed to panel material and edge band type.
Same compact width as the JSY500S — upgrades finish quality without a bigger footprint.
Ideal mid-range choice for growing workshops producing cabinets, wardrobes and office furniture.
Factory-direct from Qingdao, test-run before shipment, one-year warranty and lifetime after-sales support with spare parts at cost price.
Contact us today for a factory-direct quotation (EXW / FOB / CIF).
